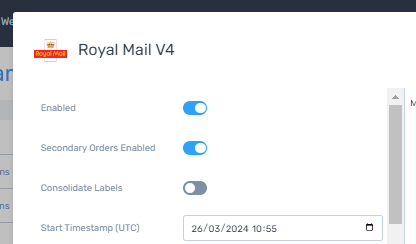

1. "Enabled" toggle - When the shipper integration has been turned on this toggle will be set to on. To disable the integration simply slide this to off.

2. "Secondary Orders" toggle- This option should be enabled if your orders have both a primary and secondary company set on them.  In most cases, this option will need to be enabled unless you are advised otherwise by Kornit X staff.

3. "Consolidate Labels" toggle -

4. "Start Timestamp" textbox - The start date/time of the integration.  Only orders created after this date/time will have a shipment created against them when the Ahead of Time option is enabled.
5. "Dropship Delegation" toggle- Dropship delegates allow an integration to be set up once on a single dropship company and the integration settings apply to all dropships that are linked to that fulfiller.  A dropship delegate can be set on any fulfiller company.  If this is a feature you want to use, enable this option on the RM integration settings of the dropship delegate that's set on the fulfiller company.
6. "Ahead of time" enabled toggle - With this toggle enabled, the system will attempt to create a shipment against the order, making the call to the carrier, shortly after order creation. Once enabled there will be an option to add a start time stamp (UTC) which will mean that the integration will only try to ship orders that were created after this time.

7. "Wait Until Required Dispatch Date" toggle - Set by default only, when ahead of time is enabled orders that have required dispatch date will not have a shipment created until dispatch date reached

8. "Shipment Strategy" dropdown - A shipment strategy can also be selected from the Shipment Strategy drop down. If nothing is selected, the default Combined Strategy is used. Please note if not using standard there are 4 different options including "Manual Override". "Individual Parcels", "Combined Parcels" and "Bundled Parcels".

9. "Dimensions Strategy" textbox - The dimensions strategy field can be left blank to use the default dimensions, here are the examples. Client\RoyalMailV4\RoyalMailV4NoDimensionsStrategy - Package dimensions information is not sent in the shipment request, Client\RoyalMailV4\RoyalMailV4MaxWidthDepthDimensionsStrategy - The package dimensions are calculated using the largest item width, the largest item depth and the total height of each item in the order. Client\RoyalMailV4\RoyalMailV4SortedStackingDimensionsStrategy - Each order item is rotated to find the shortest edge.  The sum of each items shortest edge is sent as the package height.  The width and depth package dimensions are calculated using the largest item width and the largest item depth.

If you select a dimensions strategy that sends dimensions, you must ensure that all products have width, height and depth values set, in the products' eCommerce tab.

1. "SKU Character Limit" textbox - With this textbox here you can set a number to limit the length of each SKU. This is useful if for the shipping labels you need to limit the length to 10 characters. Not setting this will just use the full SKU of say 20 characters that some products may use.

2. "Client ID" and "Client Secret" textboxes - The Client ID and Secret fields should be left blank unless you are advised otherwise by a member of the Kornit X team.

3. "Shipping Account ID" and "Shipping Location ID" textboxes - We will provide these fields for you as Intersoft will generate these for Royal Mail to be provided to you.

4. "Shipping Service Strategy" Dropdown/Textbox - This is not required and is only used when the Standard options below do not fulfil the client needs, where this is the case a custom strategy can be made at an additional development cost. Users with one will not see dropdown only the path

5. "Pre Registration Type" dropdown - This dropdown offers the options for Import One Stop Shop (IOSS) and Economic Operators Registration and Identification number (EORI) which need to be selected depending on whether or not the customer isn't paying for tax on their orders. If this is not set the end user would have to pay for the tax.

6. "Pre Registration Number" textbox - The IOSS or EORI number associated with the selection made in the Pre Registration Type drop down.


Label Settings

1. "Include Contact Telephone" toggle - With this toggle enabled the contact telephone number will include being printed on the shipping label, meaning for every customer who leaves a telephone number when ordering will receive this on their package.

2. "Include Contact Email" toggle - Same as the telephone, with this enabled the email that the customer used when placing their order will be included on the shipping label of all orders.

3. "Enable Forced Tracking" toggle - Enabled by default this will ensure that for any untracked orders you will return a number that can be used to track within the status callback.

4. "Company Name" textbox - Filling in this textbox will include your company name on the shipping labels.
5. "Contact Name" textbox - This textbox can include a contact name from your company that will be included on all shipping labels, this could for example be a generic customer service contact.

6. "Address" textboxes - Finally, the shipping label can include the return address of your company including Address Line 1-3, Town, County, Country Code and Postcode. Please note including this will ensure every shipping label generated will include the return address.

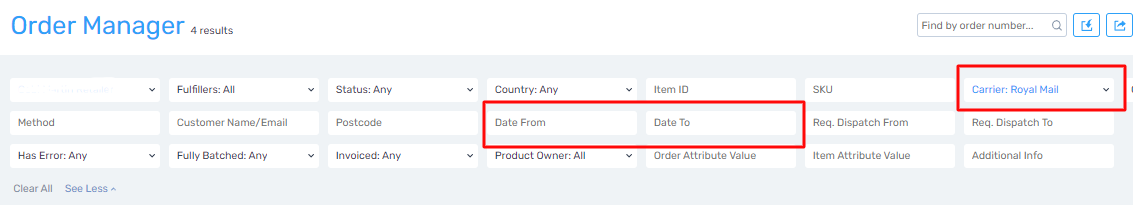

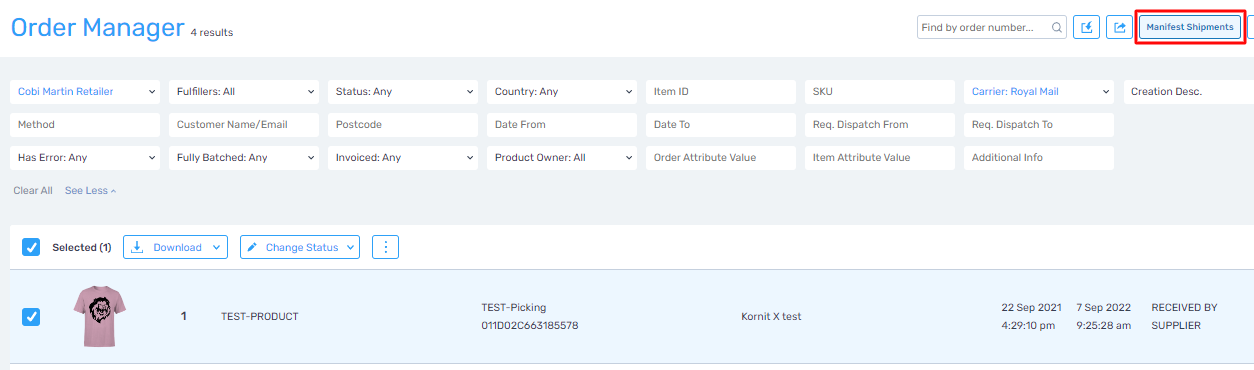

Manifesting In Order Manager

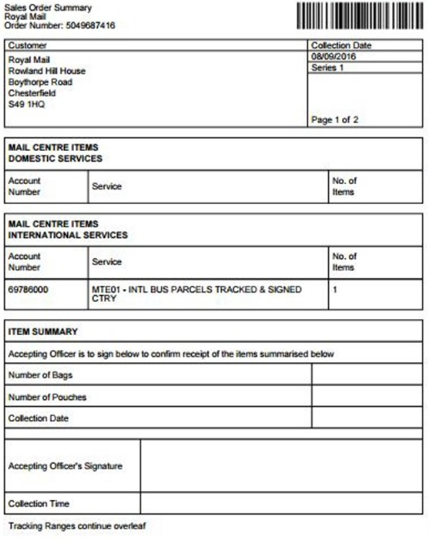

For more information on how manifesting work please refer to the following Royal Mail written documentation - Click Here

Please note that once shipments have been manifested there is no way to undo the action.

Shipping Label Examples
