Floor Workflow 6

This article details the journey through then Floor module we call Floor Workflow 6.

This workflow allows for a pre pick of stock from a master jobsheet first which contains a batch level barcode.

This means the batch level barcode can be used for higher level functions if needed like batch dispatch, QC and setting a substatus.

Taking an example this could be very useful for cut and sew production where all batched jobs can be collected on a trolley and can be scanned into different specific stations such as Sewing. This gives wider visibility of production to managers.

Workflow 6 is made up of the following steps

Step 1 - Download and print Master job sheets (From Production > Jobs)

Step 2 - Scan "Batch Picking Labels" print labels and Pick Stock

Step 3 - Scan Stock label Barcode at Print Station and download Artwork

Step 4 - Print Items

Step 5 - QA Scan (Optional)

Step 6 - Branding Scan (Optional)

Step 7 - Dispatch Scan (Either Batch by scanning master sheet or normal by scanning stock picking barcode)

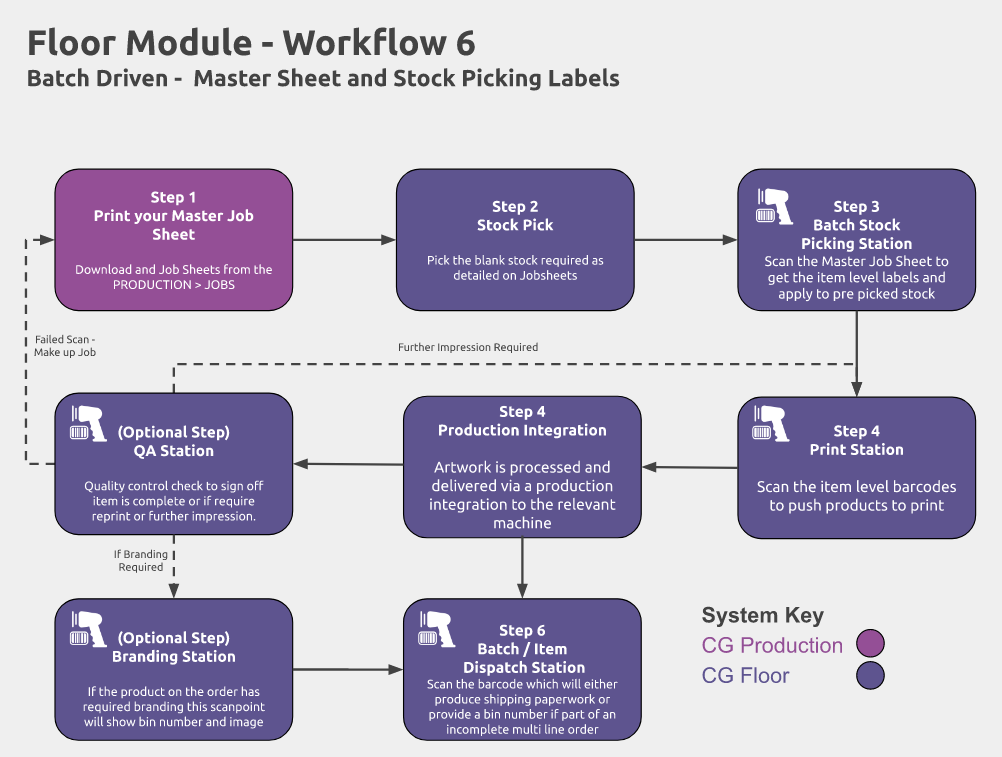

Below you can see a diagram of Workflow 6 and a link to view it full screen

https://docs.google.com/drawings/d/1KaNCpHGnRSfQ97UateI1uoWR5PpJkHaHjz-g2dGNzbw/preview
