Floor Workflow 4

Floor Workflow 4

This article details the journey through then Floor module we call Floor Workflow 4.

This workflow allows the printing of a batch of items at the same time and then labelling them for further stations.

A job can contain multiple items and a master sheet will contain details of all items, then when printed a batch barcode can be scanned to print item level barcodes to be applied to goods for moving further through the workflow.

One example of this in use is the UV printing of phone cases 6 up. The master jobsheet identifies which cases go where on a jig and when the items are printed generates labels which are applied to the inside of the printed cases.


Workflow 4 is made up of the following steps

Step 1 - Download and print Master job
sheets (From Production > Jobs)
Step 2 - Pick Stock
Step 3 - Scan Batch Barcode at Print Station and download Artwork
Step 4 - Print Items
Step 5 - Scan batch barcode at Batch Barcode Labels point and print generated labels
Step 6 - Apply generated labels to item(s)
Step 7 - QA Scan (Optional)
Step 8 - Branding Scan (Optional)
Step 9 - Dispatch Scan (Either Batch by scanning master sheet or normal by scanning item barcode)

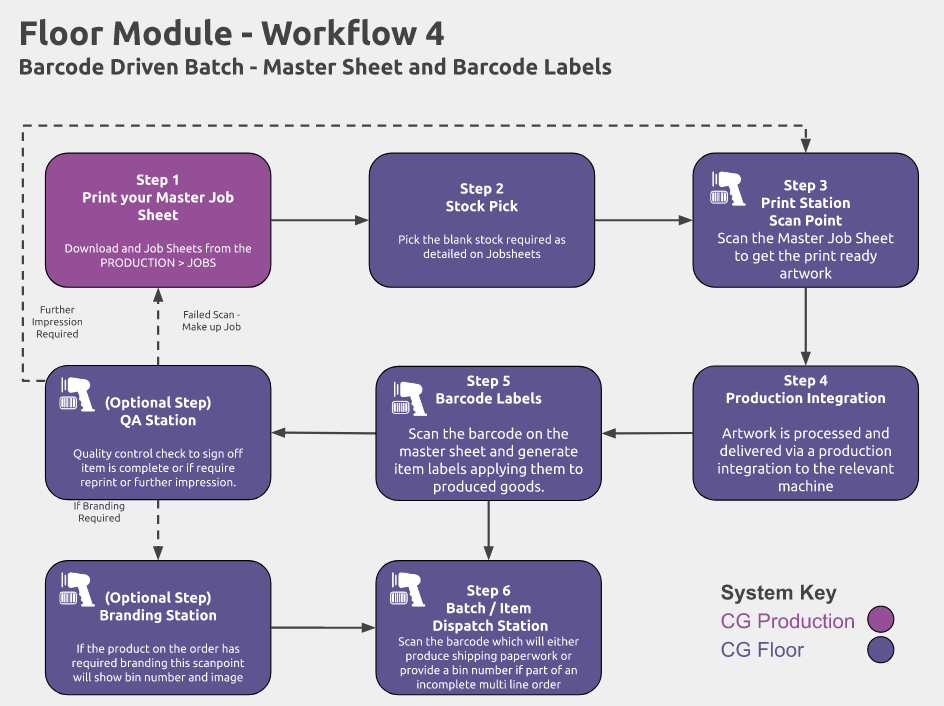

Below you can see a diagram of Workflow 4 and a link to view it full screen
