Floor | Batch Barcode Labels
Batch Barcode Labels is a station in our Floor module.
This station allows the scanning of Batch barcodes or the entry of a Batch ID to trigger the printing of barcode labels for items on the job. These labels are made to be applied to items post printing to allow for identification and further scanning on an item level.

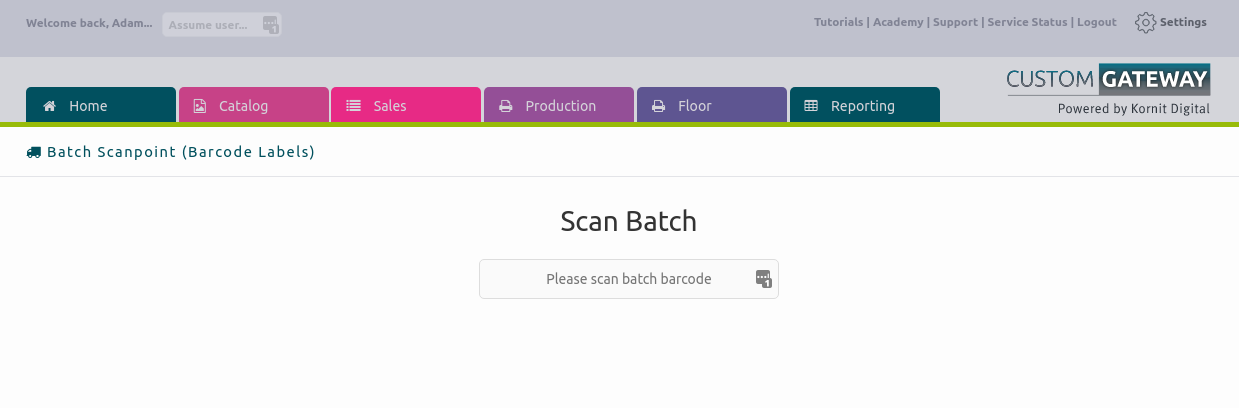

The Batch Barcodes station is available at the following link - https://platform.custom-gateway.net/v2/production-v2/batch-barcode-labels
The barcodes come out in a PDF format and if muliple items it will have multiple pages. These are formatted for use on roll fed label printers
An example label is below and the PDF attached for reference
The label size on the output is 52 x 27mm
Here is some example label stock that will be size appropriate - https://www.aalabels.com/roll-labels/rectangle/c973
Please note labels required will differ depending on your label printer make and model so be sure to check compatibility.
NOTE - This PDF can be printed smaller or larger as required but may effect the ability to scan and read. There is no setting change in the platform to change this, the printer should generally auto scale to fit.
